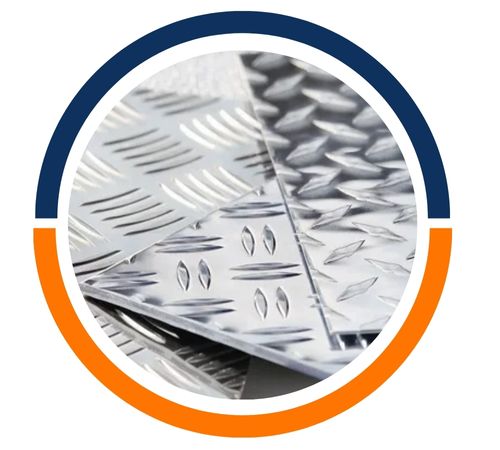

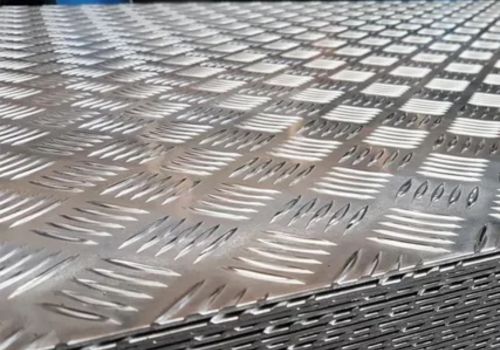

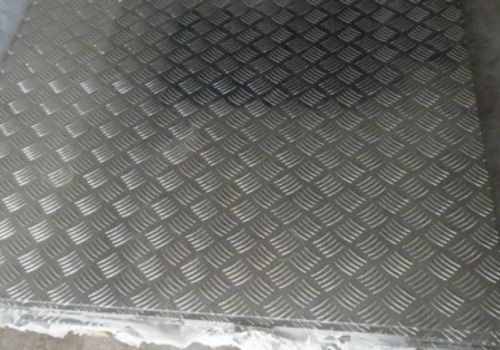

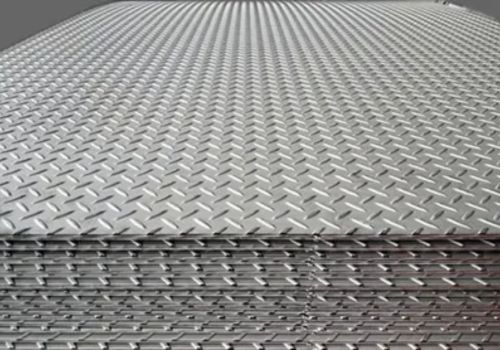

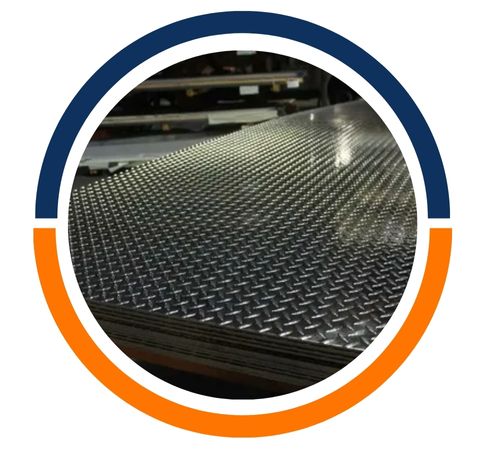

From the vibrant industrial landscape of Kolkata, Ram Aluminium stands as a trusted name, providing robust and reliable solutions for demanding projects. We take pride in manufacturing and supplying superior quality Aluminium 5083 Chequered Plates, engineered to withstand some of the toughest environments. Known for their exceptional strength and durability, our plates are the preferred choice for sectors where performance and safety are non-negotiable. We are committed to delivering products that meet the highest standards of quality and precision.
The composition of Aluminium 5083 is specifically designed for strength, primarily alloyed with magnesium, which gives it outstanding resistance to saltwater corrosion. This makes it a marine-grade aluminium, highly valued for its impressive mechanical properties. These plates offer a remarkable strength-to-weight ratio and excellent weldability, maintaining their toughness even in low-temperature conditions. Their ability to endure severe environments without sacrificing integrity is what sets them apart from other materials, ensuring long-lasting performance.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321
Thickness : 0.5-300
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish

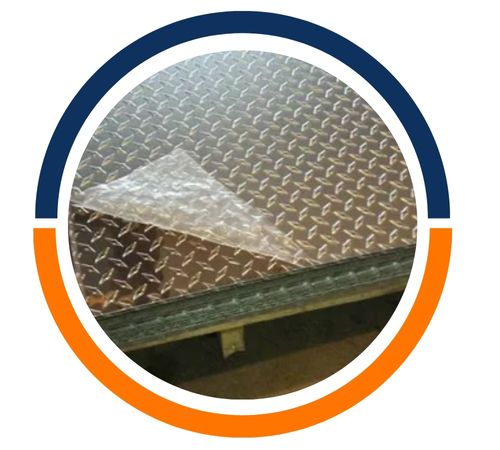

Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

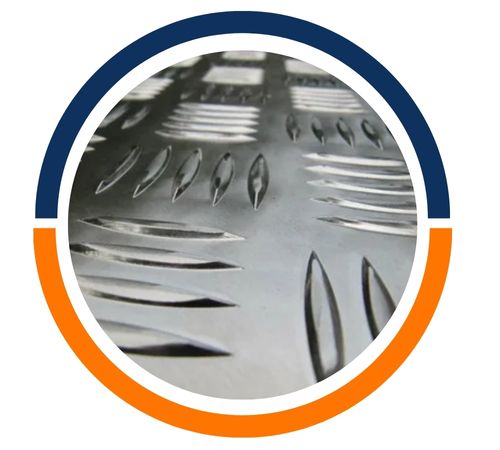

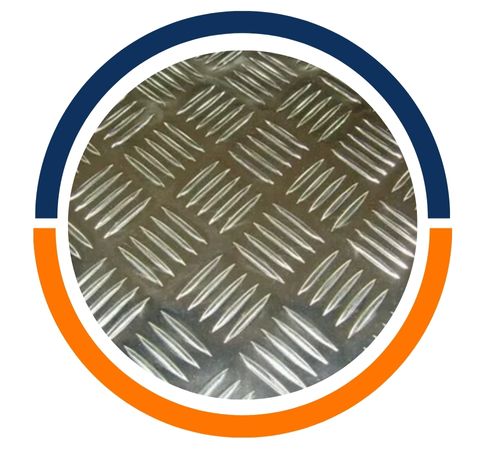

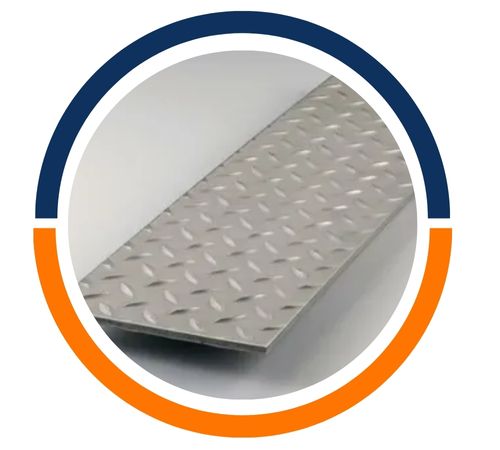

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5083 Chequered Plates to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
The unique non-slip surface of these chequered plates makes them incredibly versatile, ideal for applications where safety underfoot is critical. You will commonly find them used as flooring in marine vessels, truck trailers, and walkways in industrial plants. Their resistance to corrosion also makes them perfect for offshore platforms, chemical plants, and construction in coastal areas. Beyond heavy industry, they are also utilized in the transportation sector for railway coaches and in architectural applications, proving their utility across a diverse range of demanding fields.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
