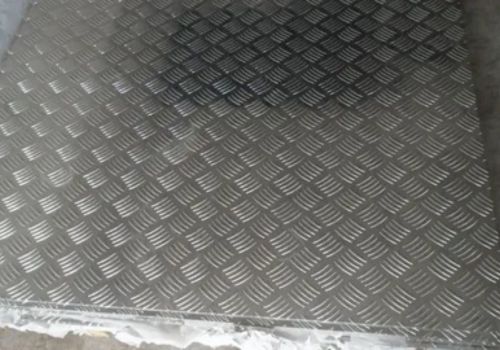

Aluminium 1100 Chequered Plates manufacturer in India

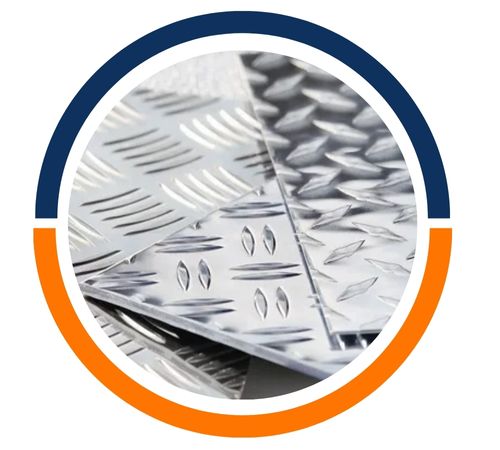

1100 H18 Aluminium Alloy Chequered Plates India, Aluminum 1100 H12 Chequered Plates, Aluminum 1100-0 Chequered Plates India, Aluminium Chequered Plates Kolkata, ASME SB209 Aluminium Alloy 1100 Five-bar Pattern Chequered Plates Stockist Kolkata, Aluminium 1100 Chequered Plates Supplier India, Aluminum 1100 H14 Chequered Plates Kolkata, 1100 H16 Aluminium Chequered Plates Kolkata, Aluminium Alloy 1100 Chequered Plates India, Aluminium A91100 Chequered Plate Exporter in Kolkata, India.

Ram Aluminium stands out as a reliable manufacturer and supplier of Aluminium 1100 Chequered Plates right in the heart of Kolkata, India. They provide top-notch anti-slip aluminium plates that cater to both industrial and architectural needs. Thanks to their cutting-edge rolling technology, rigorous quality checks, and a team of skilled technicians, the company guarantees consistent chequer patterns, precise thickness, and a smooth finish. Ram Aluminium is equipped to handle bulk orders, offer customized sizes, and ensure timely deliveries throughout India. Renowned for their corrosion resistance, lightweight nature, and impressive durability, these Aluminium 1100 Chequered Plates are perfect for flooring, structural protection, and safety-focused installations.

Aluminium 1100 Chequered Plates are crafted from commercially pure aluminium, boasting around 99.0% aluminium content. This high level of purity translates to outstanding corrosion resistance, excellent thermal and electrical conductivity, and remarkable formability. The material is lightweight, provides moderate tensile strength, and features high elongation, making it easy to cut, bend, and fabricate. The raised chequer pattern not only enhances grip but also boosts surface strength. Aluminium 1100 maintains consistent mechanical performance under light to moderate loads, proving reliable in both indoor and outdoor settings.

Aluminum 1100 Chequered Plates

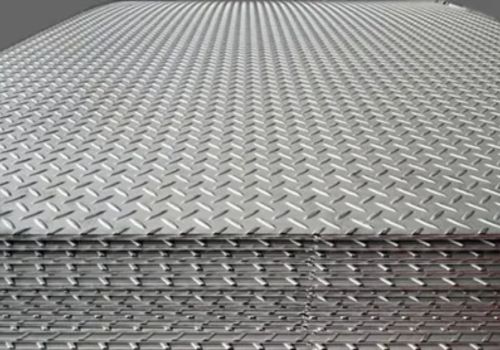

Aluminium Alloy 1100 Chequered Plates

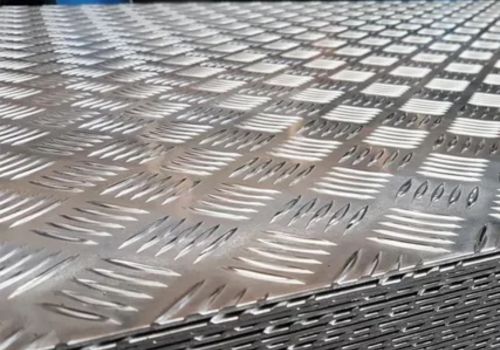

Al Alloy 1100 Chequered Plates

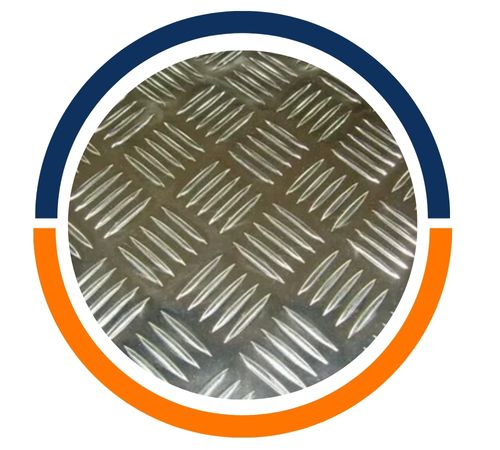

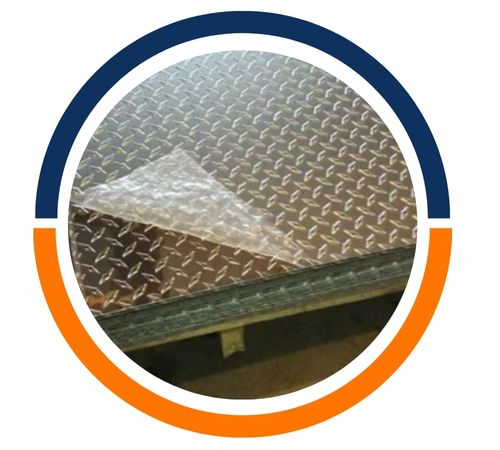

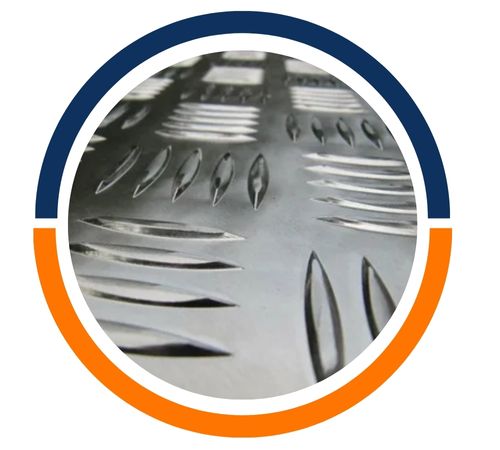

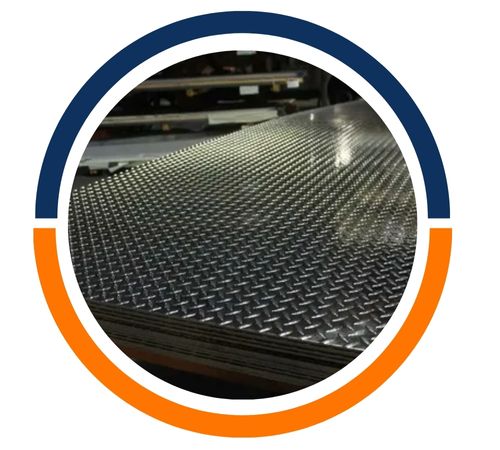

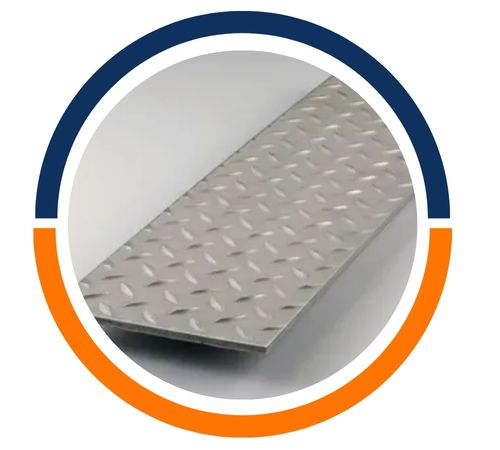

Aluminium Alloy 1100 Industrial Chequered Plates Stockiest India, BS 1E Two bar Pattern Chequered Plates India, Aluminium 1100 CR Chequered Plates Kolkata, Aluminium 1100 Hot Rolled Chequered Plates Kolkata, Aluminium 1100 One bar Pattern Chequered Plates India, Aluminium 1100 Chequered Plates Stockist Kolkata, Aluminium 1100 HR Teardrop Pattern Chequered Plates Kolkata, Aluminum 1100 Export Quality Chequered Plates Suppliers in Kolkata, India.

Specifications of Aluminium 1100 Chequered Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24

Thickness : 0.2-127

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate

Equivalent Grades of Aluminium 1100 Chequered Plates

UNS	USA	Japan	France	ISO
A91100	AA1100	JIS A1100P	NF 1100	Al 99.0 Cu.

Chemical Composition of Aluminium 1100 Chequered Plates

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Others	AI
1100 (min)	0.35	0.25	0.01	0.01	0.05	0.01	0.020	Trace	0.05 (each)	99.60%
1100 (max)	0.50	0.35	0.03	0.05	0.20	0.05	0.030	Trace	0.15 (total)	remainder

Mechanical Properties of Aluminium 1100 Chequered Plates

Alloy	Temper	UTS(Mpa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm -0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
1100	O	75	110	20	25	29
	H12	95	130	5	6	7
	H14	110	145	3	4	5
	H16	130	165	2	3	4
	H18	150	—	2	2	3

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 1100 Chequered Plates

Largest Aluminium 1100 Chequered Plates Manufacturer and Exporter in Kolkata, India

Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Are Custom Sizes Available For Aluminium 1100 Chequered Plates?

Yes, we offer custom sizes for Aluminium 1100 Chequered Plates to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in

Uses of Aluminium 1100 Chequered Plates

Aluminium 1100 Chequered Plates find extensive use in anti-slip and protective surface applications across various industries. You’ll often see them installed in industrial floors, stair treads, ramps, platforms, walkways, and loading docks. In commercial and architectural projects, they serve as wall cladding, decorative panels, and protective linings. These plates are also utilized in truck bodies, transport vehicles, refrigeration units, and marine environments due to their moisture resistance. Their lightweight design, durability, and ease of fabrication make them an ideal choice for a wide range of applications.
