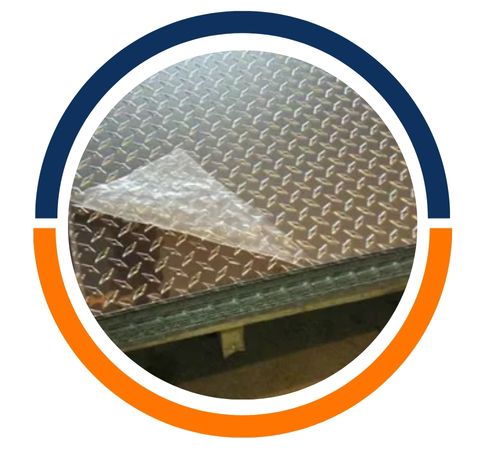

Ram Aluminium stands out as a reliable manufacturer and supplier of Aluminium 1050 Chequered Plates in Kolkata, India. They provide top-notch anti-slip aluminium plates suitable for a variety of industrial, commercial, and architectural uses. Thanks to their state-of-the-art rolling facilities, rigorous quality checks, and skilled technical team, the company guarantees consistent chequer patterns, precise thickness, and a smooth finish. Ram Aluminium is equipped to handle bulk orders, offer customized sizes, and ensure prompt delivery across the nation. Renowned for their excellent corrosion resistance, lightweight strength, and durability, their Aluminium 1050 Chequered Plates are perfect for flooring, protection, and safety-focused projects.
Aluminium 1050 Chequered Plates are crafted from commercially pure aluminium, boasting around 99.5% aluminium content. This high level of purity translates to outstanding corrosion resistance, impressive thermal and electrical conductivity, and excellent formability. The material is lightweight, provides moderate tensile strength, and exhibits high elongation, making it easy to cut, bend, and fabricate. The raised chequer pattern not only enhances grip but also boosts load-bearing efficiency. Aluminium 1050 maintains consistent mechanical performance under light to moderate loads, proving reliable in both indoor and outdoor settings.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24
Thickness : 0.2-50
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1050 Chequered Plates to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
Aluminium 1050 Chequered Plates find extensive use in anti-slip and protective surface applications across various industries. They are frequently installed in industrial floors, stair treads, ramps, walkways, platforms, and loading docks. In commercial and architectural settings, these plates serve as wall cladding, decorative panels, and protective linings. Additionally, they are utilized in truck bodies, transport vehicles, refrigeration units, and marine environments due to their moisture resistance. Their lightweight nature and durability make them an ideal choice for a wide range of applications, ensuring safety and functionality wherever they are used.
