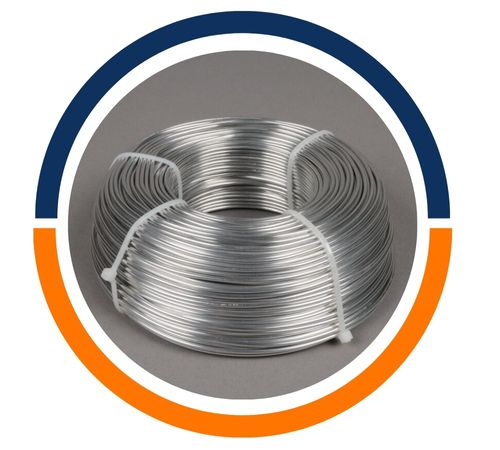

Welcome to Ram Aluminium, a trusted name in the heart of Kolkata’s industrial landscape. For years, we have dedicated ourselves to producing and supplying high-quality aluminium products, with a special focus on meeting the precise needs of our clients. Our Aluminium 1060 Wires are a testament to this commitment, offering a perfect blend of reliability and performance for a wide array of applications, all backed by our steadfast customer support and deep industry knowledge.
When it comes to composition, the 1060 grade is renowned for its exceptional purity, containing a minimum of 99.6% aluminium. This high purity is what gives these wires their standout characteristics. They are known for being incredibly soft, highly ductile, and possessing excellent formability. While not suited for high-strength applications, they offer superior corrosion resistance and outstanding thermal and electrical conductivity, making them a wonderfully versatile material for many electrical and general engineering tasks.
Standards : ASTM B221, B211
Temper : H14
Diameter : 5.5 – 400 mm
Length : 10 – 10000 mtr
Form : Shaped, Flat, Square, Round, Fine Wire, Plated and Un-plated Wire, Continuous Coils, Cut to lengths, Precision cutting Etc
Treatment : Cold Forming, Heat Treatment, Stress Relieving and Welding
| Aluminium 1060 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.20 | 0.10 – 0.15 | 0.01 – 0.03 | 0.01 – 0.03 | 0.01 – 0.05 | 0.01 – 0.03 | 0.020 – 0.030 | 99.60 |
| Mechanical Properties – Al 1060 | |||||||||||||||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | ||||||||||||||||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | |||||||||||||||
| 1060 | O | 55 | 75 | 25 | 25 | 30 | |||||||||||||
| H12 | 75 | 110 | 6 | 6 | 7 | ||||||||||||||
| H14 | 90 | 120 | 5 | 5 | 6 | ||||||||||||||
| H16 | 95 | 130 | 4 | 4 | 4 | ||||||||||||||
| H18 | 130 | — | 3 | 3 | 3 | ||||||||||||||
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1060 Wire to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
| STANDARD | UNS |
| Aluminium 1060 | A91060 |
The excellent conductivity of Aluminium 1060 Wires makes them a popular choice for various electrical applications, including busbars, overhead power transmission lines, and winding wires for motors and transformers. Beyond the electrical sector, their high ductility and corrosion resistance lend them perfectly to uses in automotive cables, architectural meshes, and fine wire drawing for intricate purposes. Essentially, wherever a combination of good conductivity, reliable formability, and resistance to the elements is needed, these wires prove to be an invaluable and cost-effective solution.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
