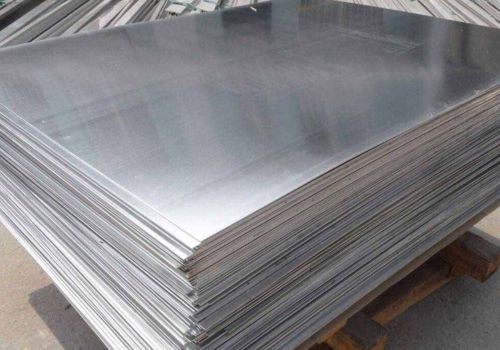

Welcome to Ram Aluminium, a trusted name in Kolkata’s industrial landscape. We take pride in being your reliable source for high-grade Aluminium 5083 sheets and plates, delivering quality and durability directly from our manufacturing hub. Our commitment goes beyond mere supply; we focus on building lasting partnerships by ensuring our clients receive materials that perfectly match their demanding specifications, backed by our deep understanding of the industry’s needs right here in India.
Aluminium 5083 is renowned for its exceptional strength, primarily due to its magnesium-centric composition. This alloy is carefully engineered to offer superior resistance to corrosion, especially in marine environments, making it incredibly tough and long-lasting. It maintains excellent weldability and formability, which means it can be easily fabricated into complex structures without losing its inherent robustness, a key reason it’s a preferred choice for challenging applications.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 5083 Sheets and Plates to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
The superior properties of Aluminium 5083 make it the go-to material for critical marine constructions like boat hulls and offshore platforms, where saltwater resistance is paramount. Its strength and lightweight nature are also invaluable in the transportation industry for building robust truck bodies and railway cars. Beyond that, you’ll find these sheets and plates extensively used in architectural projects requiring durability, as well as in military and aerospace applications where failure is not an option, proving its versatility across numerous demanding fields.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
