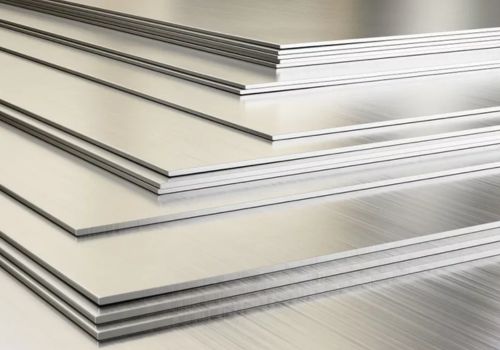

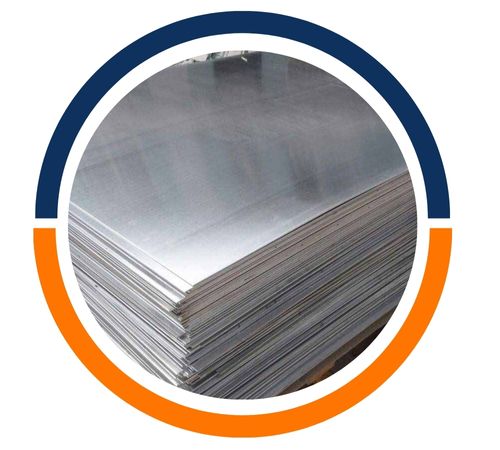

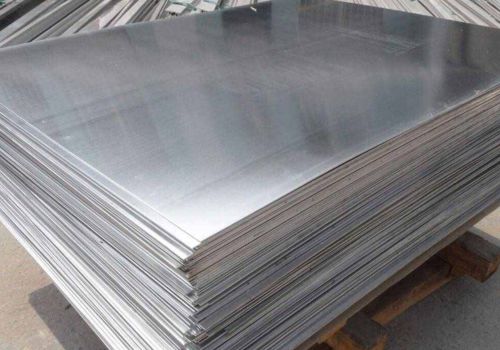

Ram Aluminium, based in Kolkata, India, is a premier manufacturer and supplier of Aluminium 7075 Sheets and Plates. Renowned for their exceptional strength-to-weight ratio and excellent corrosion resistance, these sheets and plates are ideal for aerospace, automotive, marine, and industrial applications. With a commitment to quality and precision, Ram Aluminium delivers products that meet stringent industry standards, ensuring reliability and performance. Choose us for superior Aluminium 7075 Sheets and Plates tailored to your diverse project requirements.
Aluminium 7075 Sheets and Plates are high-strength materials primarily composed of aluminum (87.1-91.4%), zinc (5.1-6.1%), magnesium (2.1-2.9%), and copper (1.2-2.0%), with trace elements like chromium (0.18-0.28%). This alloy offers exceptional mechanical properties, including a tensile strength of 572 MPa and yield strength of 503 MPa in T6 temper. It has a density of approximately 2.81 g/cm³ and demonstrates excellent fatigue resistance and low fracture toughness. Despite its strength, Aluminium 7075 maintains a good balance of machinability and corrosion resistance, making it ideal for critical aerospace and structural applications.
Standards : ASTM B209 / ASME SB209
Temper : T3,T4,T5, T6, T651 T6511
Thickness : 0.2-300
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

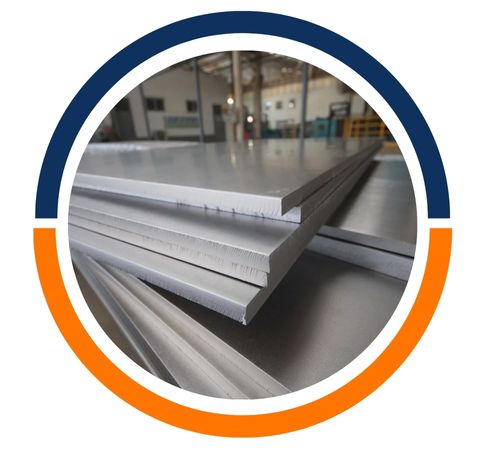

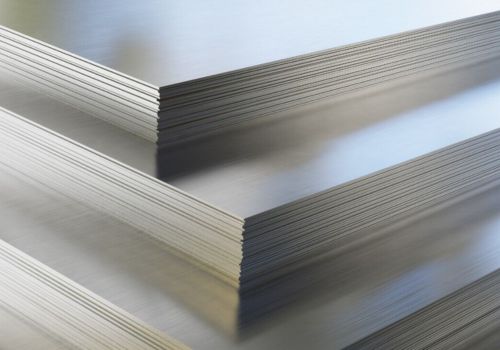

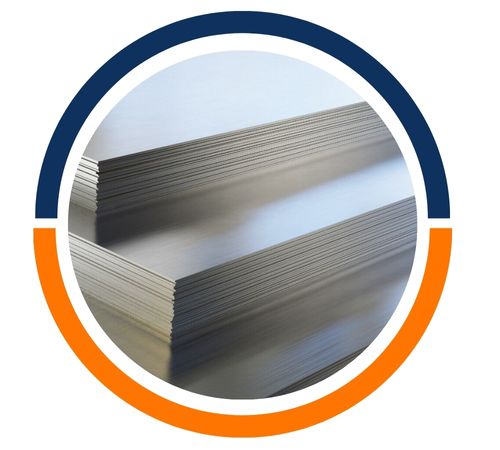

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total |
| Minimum | 1.20 | 2.10 | 0.18 | 5.10 | ||||||
| Maximum | 0.40 | 0.50 | 2.00 | 0.30 | 2.90 | 0.28 | 6.10 | 0.20 | 0.05 | 0.15 |
| Temper | Tensile | Hardness | ||||
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T6, T651 | 83 | 572 | 73 | 503 | 11 | 150 |
| T73, T7351 | 73 | 503 | 63 | 434 | 13 | N/A |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| UNS | EN | DIN,WNr | JIS | AFNOR | ISO | BS | GOST |
| A97075 | ENAW-AlZn5.5MgCu EN AW-7075 | 3.4365 AlZnMgCu1.5 | 7075 | 7075 A-Z5GU | AlZn6MgCu | 7075 L95 L96 | V95 |
Yes, we offer custom sizes for Aluminium 7075 Sheets and Plates to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
Aluminium 7075 Sheets and Plates are widely used in industries requiring high strength and durability. In aerospace, they are utilized for aircraft wings, fuselage structures, and other critical components due to their exceptional strength-to-weight ratio. The automotive sector employs them for performance-driven parts like chassis and suspension systems. They are also ideal for marine applications, sports equipment such as bicycles and climbing gear, and defense equipment like armor plates. Their fatigue resistance and machinability make them a preferred choice for high-performance and precision engineering projects.
