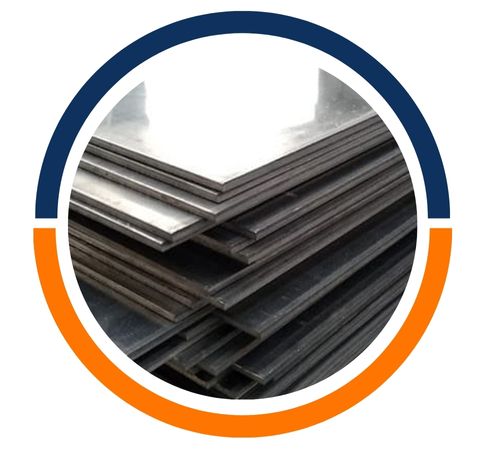

Welcome to Ram Aluminium, a trusted manufacturer and supplier based in the heart of Kolkata, India. We take pride in producing high-quality Aluminium 5086 sheets and plates, catering to industries that demand exceptional strength and reliability. Our commitment lies in providing materials that excel in challenging environments, backed by our expertise and a focus on meeting the specific needs of our customers across the nation and beyond.
The composition of Aluminium 5086 is notable for its significant magnesium content, which is the key to its remarkable strength. This alloy is designed to offer excellent resistance to corrosion, particularly in marine and saline atmospheres. It maintains good weldability and retains its mechanical properties even after welding, making it a durable and dependable choice for engineers and fabricators who require a material that can withstand heavy loads and harsh conditions.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

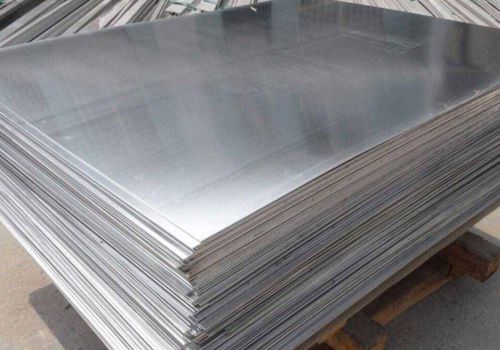

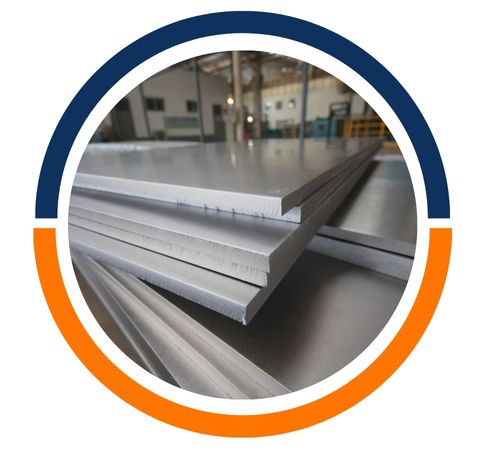

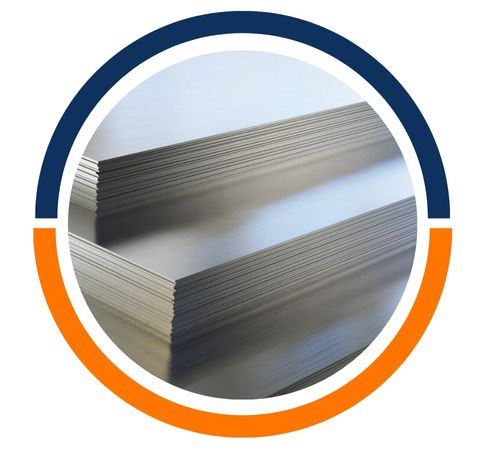

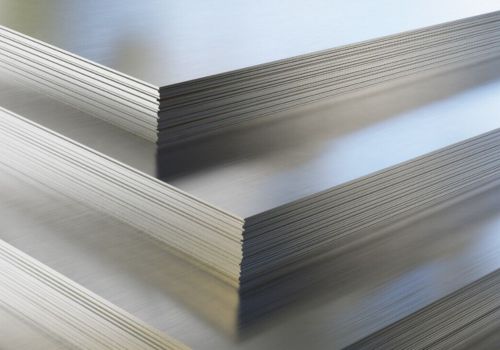

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others, each | Others, total | Al |
| 0.4 | 0.5 | 0.1 | 0.20-0.70 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Balance |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 5086 Sheets and Plates to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
You’ll find Aluminium 5086 sheets and plates hard at work in some of the most demanding applications. They are the preferred material for constructing marine components like ship hulls and offshore platforms, as well as for transportation projects including railway wagons and heavy-duty vehicles. Their strength and durability also make them ideal for building bridges, chemical tanks, and architectural structures that need to stand the test of time and the elements.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
