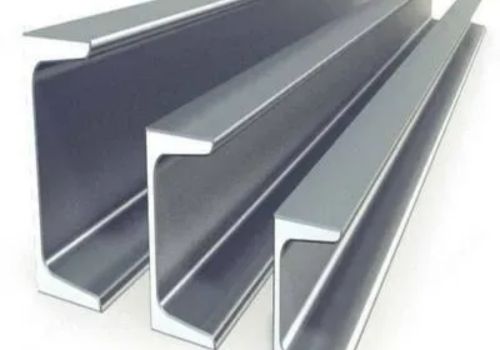

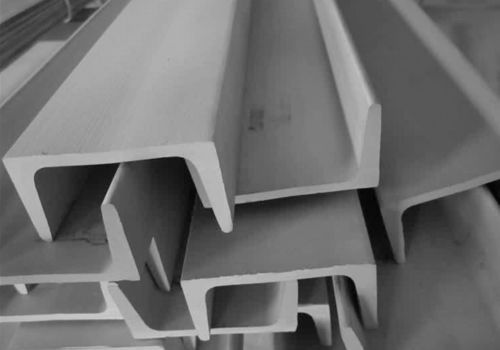

Welcome to Ram Aluminium, a trusted name in the heart of Kolkata, India. As a dedicated manufacturer and supplier, we take pride in producing high-quality aluminium solutions that meet the rigorous demands of modern industry. Our Aluminium 5086 channel is a prime example of this commitment, designed to offer exceptional strength and durability for a wide range of structural and marine applications, providing our clients with a reliable and long-lasting material they can count on.
When it comes to the specifics, the Aluminium 5086 channel stands out due to its composition. It is a magnesium-based alloy, which gives it superior resistance to corrosion, especially in marine environments. Mechanically, it boasts impressive tensile strength and excellent weldability without any loss of its properties. This combination makes it an incredibly tough and versatile material, capable of handling significant stress and harsh conditions while maintaining its integrity over the long term.

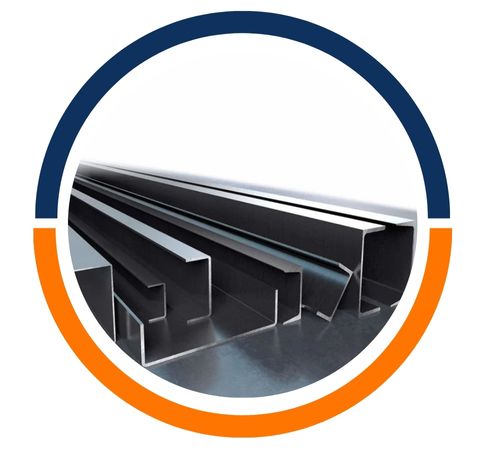

Specifications: ASTM B211 / ASME SB211
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Thickness: 0.91mm to 10 mm
Length: 10 to 12 Feet or as per clients’ requirement
Width: 9.5 mm X 9.5 mm To 150 mm X 75 mm or Custom

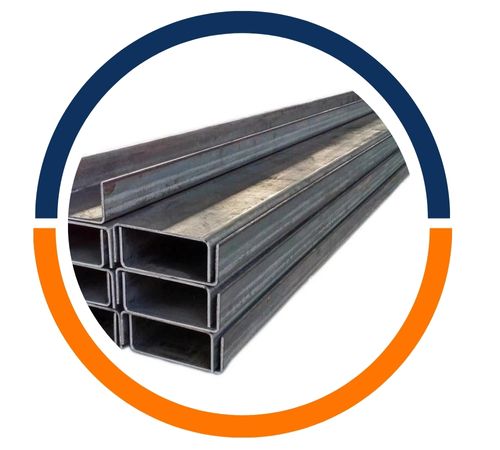

Finish: Mill, Customer specific finish

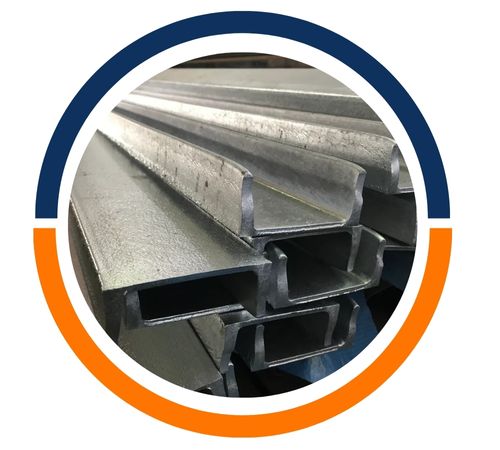

Surface: Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc
Form: C-Channel, Box-Channel, U-Channel, J-Channel, Hat Channel, Strut Channels, Miscellaneous Channels
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others, each | Others, total | Al |
| 0.4 | 0.5 | 0.1 | 0.20-0.70 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Balance |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
Yes, we offer custom sizes for Aluminium 5086 Channel to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
You’ll find the Aluminium 5086 channel hard at work in some of the most demanding settings. It is a go-to material for shipbuilding, offshore platforms, and transportation equipment like truck bodies and railway coaches. Its strength and light weight also make it ideal for architectural structures, bridges, and high-stress fabrication projects. Essentially, wherever resilience against the elements and structural reliability are non-negotiable, this channel proves to be an indispensable component.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
