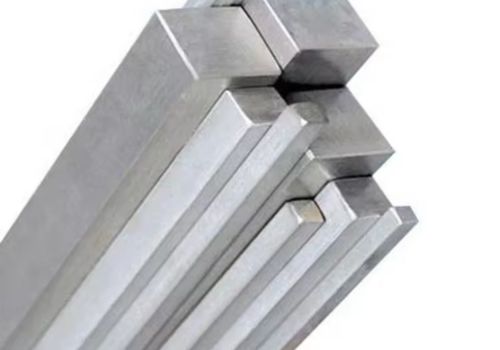

Welcome to Ram Aluminium, a trusted name in Kolkata’s industrial landscape. We take pride in being your dedicated manufacturer and supplier of high-quality aluminium products, with a special focus on Aluminium 5052 Flat Bars. Our commitment lies in delivering materials that combine exceptional strength with reliability, sourced directly from our facilities to your project, ensuring both quality and consistency for every client we serve.
Aluminium 5052 is primarily an alloy of magnesium and chromium, which gives it a remarkable balance of properties. This combination results in flat bars that are known for their excellent resistance to corrosion, especially in marine environments. They offer a high strength-to-weight ratio and are comparatively stronger than many other aluminium grades, while still maintaining good workability for fabrication and finishing processes.
Standards : ASTM B221, B211, B565, B316, AMS 4121 5052
Temper :O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 100 mm To 3000 mm Long & Above, Random, Fix & Cut Length or as per clients’ requirement
Size : 5 mm To 500 mm
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | AI | |||||||||
| 5052 | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | bal | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| – | 0.50 | – | 0.50 | 3.8 | 4.9 | 0.30 | 0.9 | 1.2 | 1.8 | – | 0.10 | – | 0.25 | – | 0.15 | |||
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 5052 | H32 | 171 | 213 | 16 | 18 | 19 |
| 213 | 261 | 5 | 7 | 9 | ||
| 233 | 281 | 4 | 6 | 7 | ||
| 254 | 302 | 3 | 4 | 4 | ||
| 268 | – | 3 | 4 | 4 | ||
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| AW-AlMg2.5 | Al-Mg.2 | A95052 | 3.3523 |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5052 Flat Bars to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
The versatility of Aluminium 5052 Flat Bars makes them a favourite across numerous fields. You’ll find them forming the backbone of marine components like boat hulls and railings, as well as in architectural projects for handrails and trim. They are equally essential in manufacturing trucks, trailers, and even electronic chassis, proving their worth anywhere a combination of light weight, strength, and lasting durability is required.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
