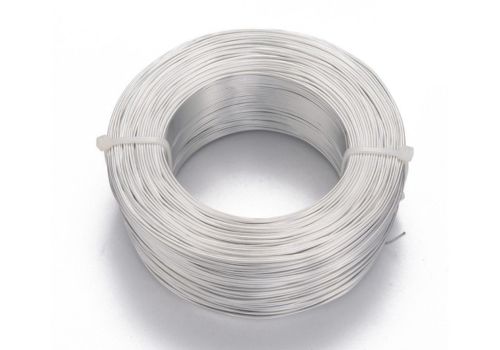

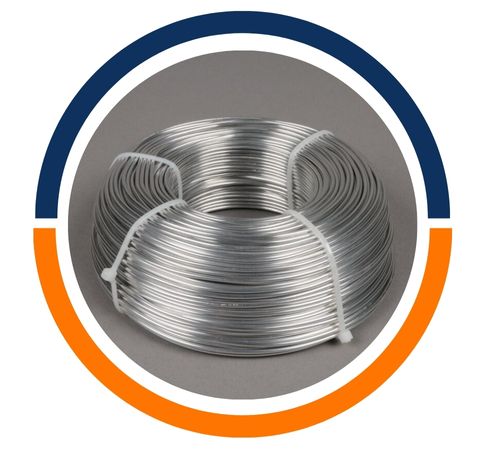

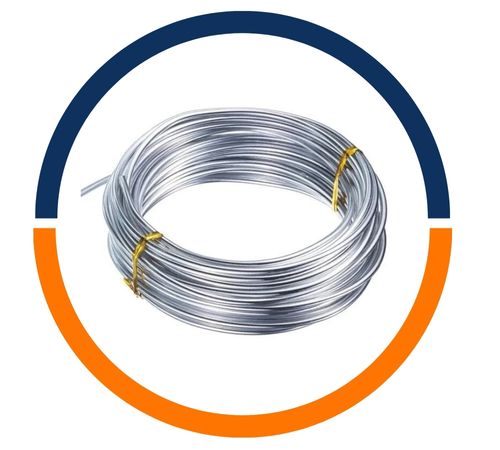

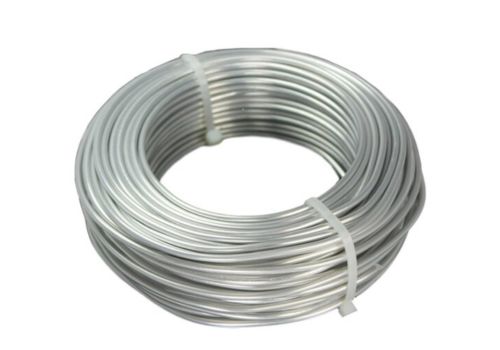

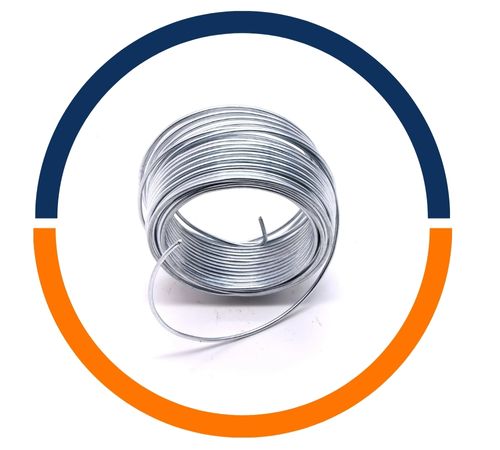

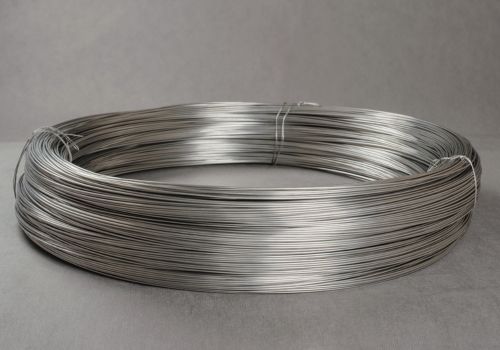

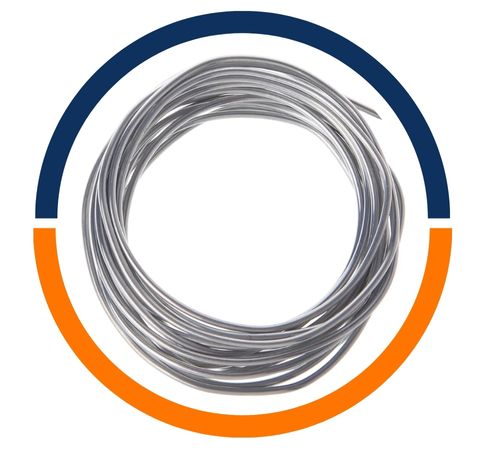

Welcome to Ram Aluminium, your trusted partner in Kolkata for premium aluminium solutions. We take pride in being a leading manufacturer and supplier of high-grade materials, with a special focus on Aluminium 1050 Wires. Our commitment to quality and customer satisfaction ensures you receive wires that are not only reliable but also perfectly suited for demanding applications, backed by our extensive industry expertise and a dedication to excellence that has become our hallmark.
Aluminium 1050 is known for its exceptional purity, consisting of at least 99.5% aluminium. This composition gives the wires excellent corrosion resistance and high electrical conductivity. Mechanically, they offer good formability and are relatively soft, making them easy to work with for various fabrication needs. While not the strongest alloy, their high ductility allows them to be drawn into fine wires without cracking, making them a versatile choice for projects where strength is secondary to other key properties.
Standards : ASTM B221, B211
Temper : H14
Diameter : 5.5 – 400 mm
Length : 10 – 10000 mtr

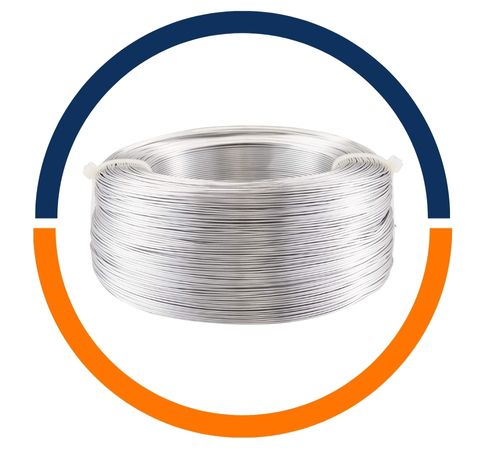

Form : Shaped, Flat, Square, Round, Fine Wire, Plated and Un-plated Wire, Continuous Coils, Cut to lengths, Precision cutting Etc
Treatment : Cold Forming, Heat Treatment, Stress Relieving and Welding
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1050 Wire to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |

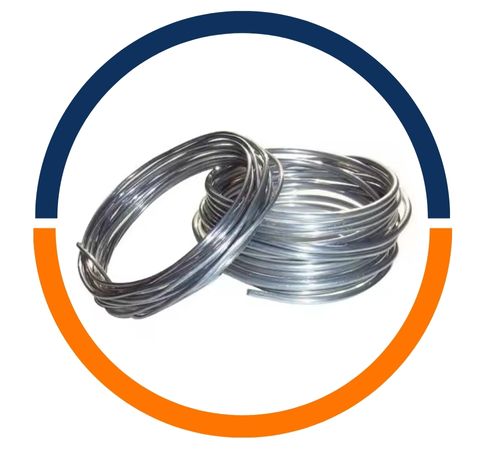

The uses for Aluminium 1050 Wires are diverse, making them a popular choice across many fields. You’ll often find them expertly woven into conductor cables for electrical transmission or seamlessly integrated into the windings of transformers and motors. Beyond power, their malleability is ideal for crafting intricate jewelry and robust hardware items. They are also essential in the production of rivots and nails, and are widely used for general-purpose welding, proving their versatility in both industrial and creative workshops.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
