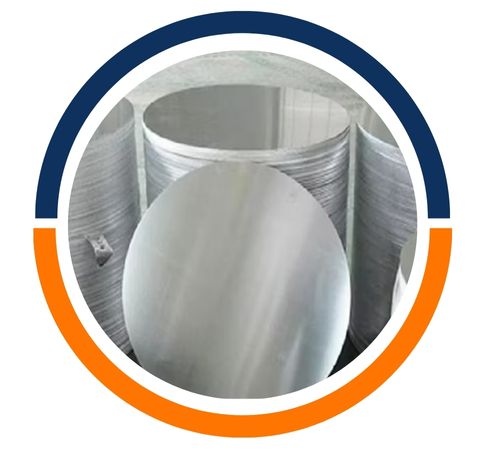

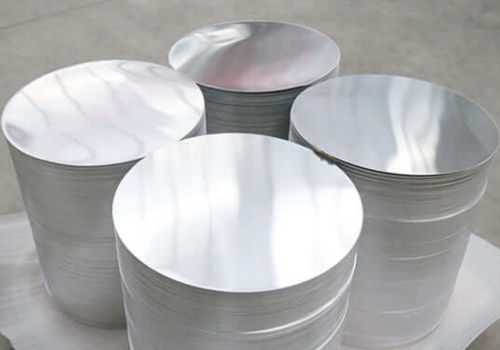

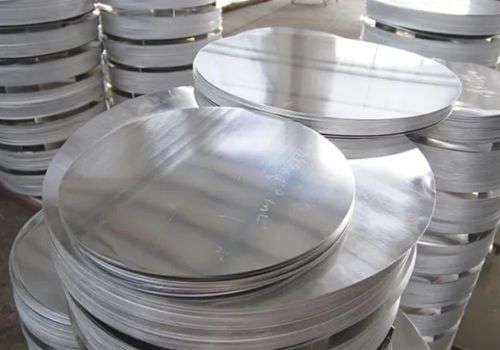

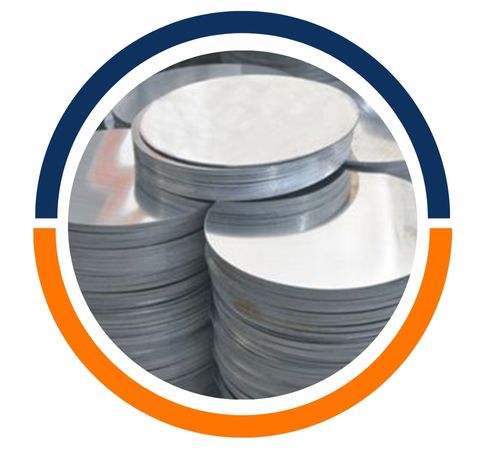

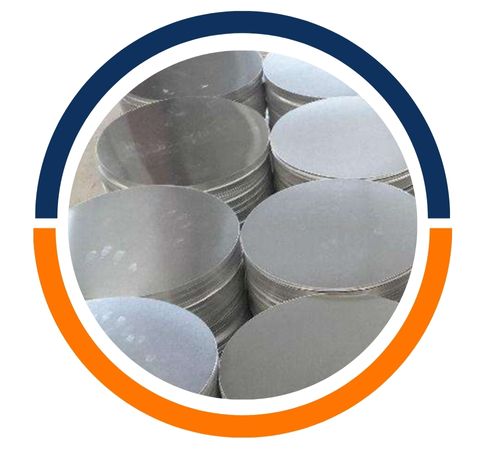

Ram Aluminium that is located in Kolkata, India, is a reliable company that deals in the manufacture and supply of top-quality Aluminium 1050 Circles. Being exact, long-lasting, and light in weight, these circles are made with the latest manufacturing techniques to ensure a superior surface finish and dimensional accuracy.
Aluminium 1050 Circles by Ram Aluminium are perfect for the industries that are looking for dependable, rust-resistant, and visually attractive metal products.
By being very quality-conscious, punctual with the delivery, and customer-friendly, Ram Aluminium is able to meet the various industrial requirements and thus be the most trusted supplier of architects, fabricators, and manufacturers all over India.
Aluminium 1050 Circles are made of 99.5% pure aluminium and thus have almost no limitations in their application. They are characterized by good corrosion resistance, high thermal and electrical conductivity, and excellent workability. The single components have good strength but are still soft and ductile, so they can be easily formed, bent, or shaped without the risk of cracking. The metal is characterized by a tensile strength of about 70–120 MPa, yield strength of 40–60 MPa, and elongation of 10–25%, which, combined, guarantee it to be both flexible and durable. Light in weight and strong at the same time, Aluminium 1050 Circles do not contain iron and are also chemically resistant, thus able to serve for a long time in the different applications sector.
| Specifications | ASTM B209 / ASME SB209 |
|---|---|

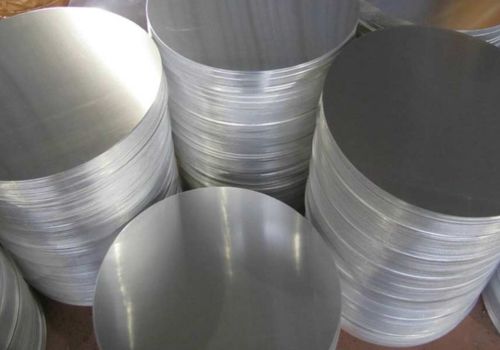

| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |

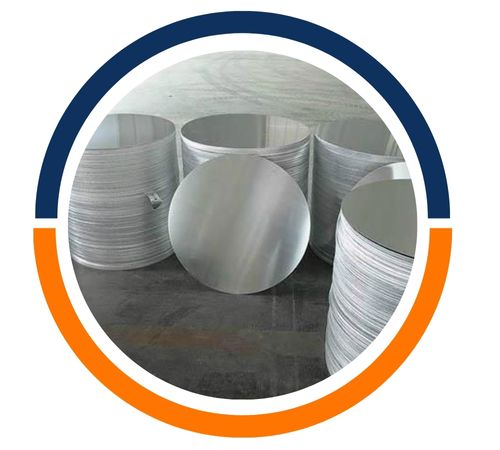

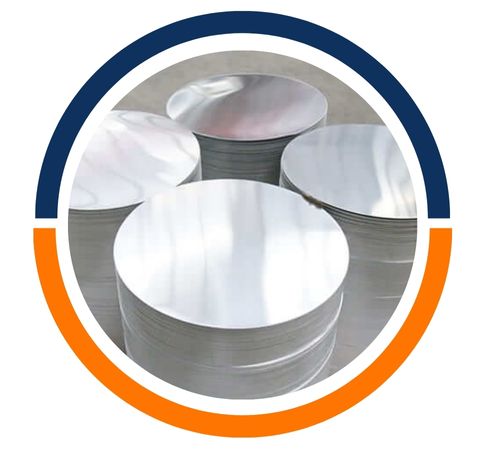

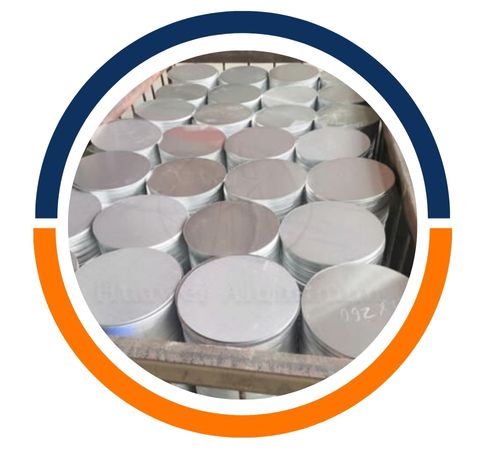

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
Ram Aluminium based in Kolkata, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1050 Circles to meet specific project needs. Our team at Ram Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ramaluminium.co.in
Aluminium 1050 Circles are majorly impelled for usage in such areas as the
automotive, aerospace, and architectural industries on account of their light
weight, rust resistance, and good-formability nature. Decorative panels, lighting
fixtures, electrical components, kitchen utensils, heat exchangers, and
signage are some of the areas where these circles are heavily utilized. The
circles also find a use in the production of reflectors, the packing industry,
and the fabrication of industrial equipment where the accuracy and high-quality
metal finish are of utmost importance. The circles are chosen most often by
manufacturers and designers because of their capability to endure
environmental conditions while still being easy to work with. Ram Aluminium
is committed to making sure every circle is up to the mark in terms of quality,
thus, they are dependable solutions for both the industrial and creative
sectors.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
